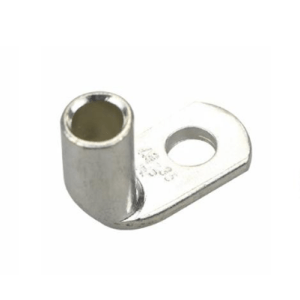

GPH90-10/5 GPH 90 Degree Bend Copper Tube Terminal AWG8# 10m㎡ Cable Lug

Description

Premium T2 Copper Construction‌: The GPH90-10/5 features high-purity T2 copper, ensuring excellent electrical conductivity and corrosion resistance for long-term reliability.

‌Designed for Efficiency‌: This 90-degree bend terminal is specifically engineered for AWG 8# (10mm²) cables, providing a secure, low-resistance connection in tight spaces.

‌Versatile Applications‌: Ideal for automotive, industrial, and electrical systems, this cold-pressed terminal delivers consistent performance in demanding environments.

‌Certified Quality‌: Meets stringent industry standards for power transmission efficiency, making it a trusted choice for professional installations.

Send email to us

Dimensions

φE(mm)	5.3
ΦD(mm)	7
Φd(mm)	4.5
W(mm)	12
L2(mm)	16
L1(mm)	23

General Specifications

Material	Pure Copper
Copper Content	≥99.9%
Surface	Tin-Plated
Tongue Angle	90 Degree
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
