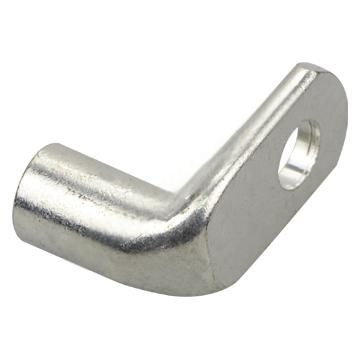

GPH90-6/4 GPH 90° copper tube terminals AWG 12-10 standard barrel without inspection window

Description

The ‌GPH90-6/4‌ tube terminals deliver ‌premium T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌AWG12-10 (3.3-5.3mm²) capacity‌ for versatile wiring
  • ‌90° angled standard barrel‌ for compact installations
  • ‌Corrosion-resistant finishes‌:
    • Standard bare copper
    • Optional tin plating (5-10μm thickness)
  • ‌Cold-forged construction‌ (UL486A/B compliant)
  • ‌-60°C to +200°C operational range‌

‌Applications:‌ Ideal for industrial control panels, automotive wiring, and tight-space electrical connections.

Send email to us

Dimensions

φE(mm)4.3
ΦD(mm)6.5
Φd(mm)3.5
W(mm)10
L2(mm)14
L1(mm)22.5

General Specifications

Colourmatel
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
