You are here: / / / / / Heavy Duty 2 AWG Long Barrel Lug – UL Listed Copper Terminal, Straight...
Heavy duty 2 AWG compression lug with long barrel design, made from T2 copper, UL listed, straight tongue, and #10 stud hole.Heavy duty 2 AWG compression lug with long barrel design, made from T2 copper, UL listed, straight tongue, and #10 stud hole.
Heavy duty 2 AWG compression lug with long barrel design, made from T2 copper, UL listed, straight tongue, and #10 stud hole.
Heavy duty 2 AWG compression lug with long barrel design, made from T2 copper, UL listed, straight tongue, and #10 stud hole.

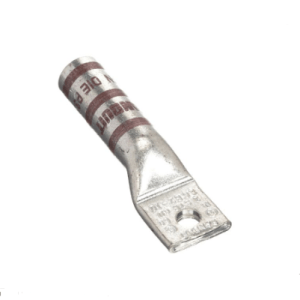

Heavy Duty 2 AWG T2 Copper Lug | Long Barrel | UL Listed | Straight Tongue | #10 Stud

Description

  • Feature : Heavy duty construction with long barrel design manufactured from high-conductivity T2 copper, featuring straight tongue configuration and #10 stud hole

  • Advantage : Extended barrel provides maximum crimp integrity while T2 copper ensures superior conductivity and UL certification guarantees safety compliance

  • Benefit : Delivers reliable power transmission in demanding applications, reduces installation time with optimal crimping performance, and meets industry safety standards

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Cable Range: 2 AWG

  • Stud Size: #10

  • Barrel Type: Long Barrel

  • Tongue Design: Straight

  • Certification: UL Listed

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial power distribution, electrical equipment, control panels, and heavy-duty applications requiring UL certified, high-current connections.

Send email to us

Dimensions

Bolt Size#10 in
Tang Width (C)0.60 in
Barrel length (B)1.25 in
Overall length (L)2.10 in
Inner diameter (ID)0.31 in
Outer diameter (OD)0.42 in

General Specifications

ColourBrown
MaterialCopper
Tongue TypeLong
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
