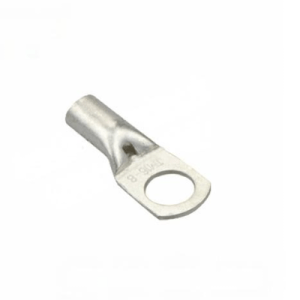

JM4-4 JM Copper Tube lugs 14-12AWG 2.5-4mm² Cable Terminal

Description

High-performance ‌T2 copper‌ terminal featuring:

‌Cold-forged seamless barrel‌ (99.9% purity) with 100% IACS conductivity for energy-efficient connections
‌Dual AWG/mm² marking‌ (14-12AWG / 2.5-4mm²) ensures global compatibility in control panels and motor terminals
‌Hexagonal crimp zone‌ prevents conductor slippage under vibration (IEC 61373 compliant)
‌Tin-plated surface‌ resists oxidation in humid environments (-40°C to 105°C operational range)

Dimensions

φE(mm)	4.2
ΦD(mm)	4.4
Φd(mm)	3.2
W(mm)	10
B(mm)	8
L(mm)	22

General Specifications

Material	Pure Copper
Copper Content	≥99.9%
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
