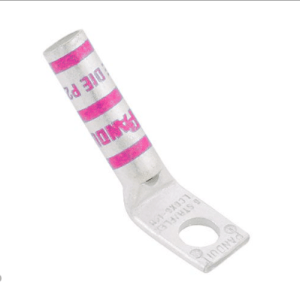

L1/0-10HW Copper 1 Hole 45° Tongue Compression Lugs #10″ Stud Size Pink

L1/0-10HW 45° Angled Compression Lug | High-Purity Copper | 1/0 AWG | #10 Stud | Pink Insulation

Description

Engineered with high-purity copper for optimal conductivity, this 45-degree angled compression lug delivers reliable performance in space-constrained applications. Designed for 1/0 AWG cables with #10 stud connections, its single-hole mounting and angled tongue facilitate efficient installation in tight spaces. The distinctive pink insulation ensures easy circuit identification while providing durable dielectric protection.

Technical Specifications:

Conductor Material: High-Purity Copper
Cable Range: 1/0 AWG
Stud Size: #10
Mounting: Single Hole
Tongue Angle: 45°
Insulation Color: Pink
Standards: UL 486A, RoHS Compliant
Temperature Rating: -40°C to 105°C

Application Scenarios:
Ideal for industrial control panels, electrical cabinets, renewable energy systems, and power distribution equipment where space optimization and reliable connections are critical.

Send email to us

Dimensions

Bolt Size	#10 in
Tang Width (C)	0.75 in
Barrel length (B)	0.88 in
Overall length (L)	1.92 in
Inner diameter (ID)	0.39 in
Outer diameter (OD)	0.52 in

General Specifications

Colour	Pink
Material	Copper
Tongue Type	Standard
Tongue Angle	45 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
