L1/0-56FW 90° Compression Lug | T2 Copper | 1/0 AWG | 5/16" Stud | Pink
L1/0-56FW 90° Compression Lug | T2 Copper | 1/0 AWG | 5/16" Stud | Pink
L1/0-56FW 90° Compression Lug | T2 Copper | 1/0 AWG | 5/16" Stud | Pink

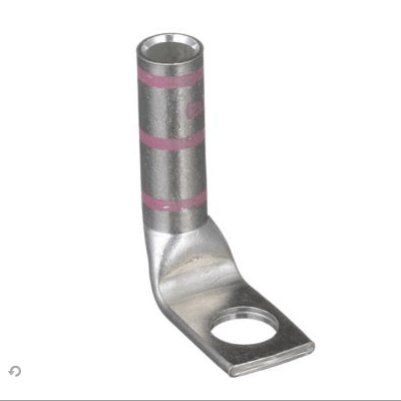

90-degree angled compression lug for 1/0 AWG cables, crafted from T2 copper with a 5/16″ stud hole and pink insulation for easy circuit identification.

Description

Feature: 90-degree tongue design manufactured from T2 copper with single-hole mounting and pink color-coded insulation
Advantage: Enables efficient right-angle connections in tight spaces while providing high conductivity and visual identification
Benefit: Saves valuable panel space, simplifies installation in confined areas, and reduces wiring errors through color-coded recognition

Data Overview

  • Material: T2 Copper

  • Cable Range: 1/0 AWG

  • Stud Size: 5/16″

  • Mounting: Single Hole

  • Tongue Angle: 90°

  • Insulation Color: Pink

  • Standards: UL 486A, RoHS

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Electrical panels, control cabinets, power distribution boxes, and industrial machinery where space optimization and reliable right-angle connections are critical.

Send email to us

Dimensions

Bolt Size5/16 in
Tang Width (C)0.75 in
Barrel length (B)0.88 in
Overall length (L)1.51 in
Inner diameter (ID)0.39 in
Outer diameter (OD)0.52 in

General Specifications

ColourPink
MaterialCopper
Tongue TypeStandard
Tongue Angle90 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system

Related Products

Wire harness finished product

123456

Cable Lugs Application

1234

We are committed to: new material technology research and development and in-depth customization services

Kunshan Xinluan New Material Technology Co.
Sales Office: Room 2005, Building 21, Jitian International Plaza, No.672 Chuangye Road, Kunshan Development Zone, Kunshan, China
Postal Code: 215300
Tel: +86 13285110837
Email: Anny@xinluancq.com
Email: Tina@suqinsz.com
Email:Jean@xinluancq.com
WhatsApp: 8613285110837
