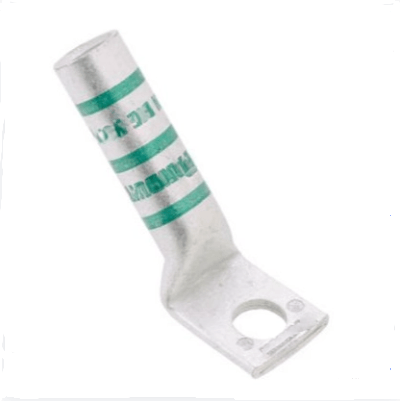

L1-10H/W 45° Angled Compression Lug | T2 Copper Construction | 1 AWG | #10 Stud | Single Hole

Description

This 45-degree angled compression lug is precision-engineered with T2 copper, delivering superior conductivity and mechanical strength for efficient power transmission. Designed for 1 AWG cables with a #10 stud connection, its single-hole mounting design and angled tongue provide optimal spatial flexibility in confined installations. The seamless barrel ensures perfect crimping performance.

Technical Specifications:

Material: T2 Copper
Cable Range: 1 AWG
Stud Size: #10
Mounting: Single Hole
Tongue Angle: 45 Degrees
Type: Compression Lug
Finish: Bare Copper
Compliance: UL 486A, RoHS

Application Scenarios:
Ideal for switchgear, power distribution boxes, industrial machinery, renewable energy systems, and electrical panels where space-optimized, high-current connections are required.

Send email to us

Dimensions

Bolt Size	#10 in
Tang Width (C)	0.68 in
Barrel length (B)	1.38 in
Overall length (L)	1.83 in
Inner diameter (ID)	0.36 in
Outer diameter (OD)	0.46 in

General Specifications

Colour	Green
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
