You are here: / / / / / L1-12/W 1 AWG Copper Compression Lug – Long Barrel, 1 Hole, 1/2″...
1 AWG straight compression lug made from T2 copper with long barrel design, 1/2" stud hole and green color coding.1 AWG straight compression lug made from T2 copper with long barrel design, 1/2″ stud hole and green color coding.
1 AWG straight compression lug made from T2 copper with long barrel design, 1/2" stud hole and green color coding.
1 AWG straight compression lug made from T2 copper with long barrel design, 1/2" stud hole and green color coding.

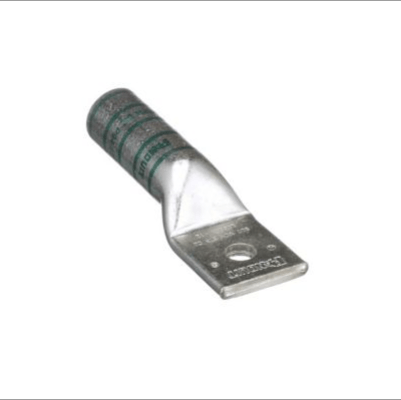

1 AWG T2 Copper Compression Lug | Long Barrel | 1/2″ Stud | Straight | Green Code | Single Hole

Description

  • Feature : Straight barrel design manufactured from high-conductivity T2 copper, featuring extended barrel length for 1 AWG cables with 1/2″ stud hole and green insulation

  • Advantage : Long barrel provides maximum crimp surface area for optimal conductivity while T2 copper construction ensures superior current carrying capacity and durability

  • Benefit : Ensures reliable power transmission in high-current applications, reduces installation time with easy crimping, and provides clear circuit identification through green coloring

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Cable Range: 1 AWG

  • Stud Size: 1/2″

  • Barrel Type: Long Barrel

  • Mounting: Single Hole

  • Design: Straight Tongue

  • Color Code: Green

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial power distribution, electrical panels, renewable energy systems, and applications requiring reliable straight connections for 1 AWG cables.

Send email to us

Dimensions

Bolt Size1/2 in
Tang Width (C)0.73 in
Barrel length (B)1.38 in
Overall length (L)2.81 in
Inner diameter (ID)0.36 in
Outer diameter (OD)0.46 in

General Specifications

ColourGreen
MaterialCopper
Tongue TypeLong
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
