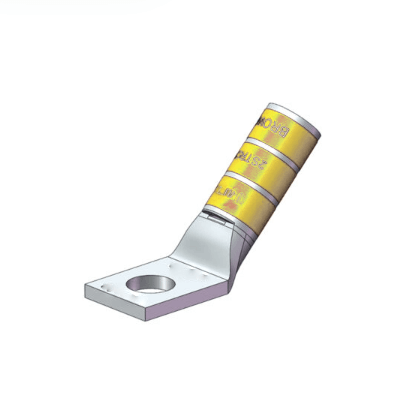

L1410-14HW 45°Copper Lug AWG 14-10# one hole1/4 with inspection window yellow

Description

Premium ‌T2 oxygen-free copper‌ connector featuring:

  • ‌45° offset design‌ reduces panel space by 30% vs straight lugs while maintaining 100A continuous current capacity
  • ‌Transparent inspection window‌ verifies wire insertion depth for 14-10AWG (2.5-6mm²) conductors
  • ‌Seamless cold-forged barrel‌ with 101% IACS conductivity and 600V AC/DC rating (-40°C to 125°C)
  • ‌Yellow zinc-nickel plating‌ exceeds 500hr salt spray resistance for marine/RV applications

‌Certified for‌: Solar combiner boxes, EV charging stations, and UL 486C Class B high-vibration environments.

Send email to us

Dimensions

Bolt Size1/4 in
Tang Width (C)0.41 in
Barrel length (B)0.69 in
Overall length (L)1.18 in
Inner diameter (ID)0.13 in
Outer diameter (OD)0.22 in

General Specifications

ColourYellow
MaterialCopper
Tongue TypeStandard
Tongue Angle45 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
