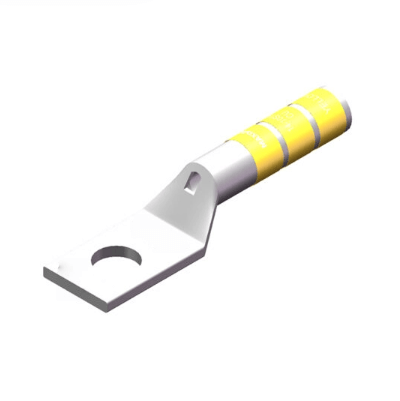

L1410-14W ground Lugs AWG 14-10# one hole 1/4” long barrel with inspection window yellow

Description

The ‌1-14W‌ grounding lugs feature ‌T2 pure copper construction‌ (99.9% conductivity) with industry-leading corrosion protection options:

  • ‌Standard green polymer coating‌ (safety color-coding)
  • ‌Premium plating options‌:
    • Hot-dip galvanized (ASTM B633 Type II)
    • Electroless nickel (5-10μm thickness)
  • ‌Precision 1/4″ (6.35mm) mounting hole‌
  • ‌Cold-forged terminal‌ (meets UL486A/B)
  • ‌-60°C to +200°C operational range‌
  • ‌Stamped AWG1/42.4mm² markings‌

‌Applications:‌ Critical for substation grounding, solar farms, and petrochemical facilities. Compliant with IEEE 80, NEMA, and IEC 62561 standards.

Send email to us

Dimensions

Bolt Size1/4 in
Tang Width (C)0.41 in
Barrel length (B)0.69 in
Overall length (L)1.52 in
Inner diameter (ID)0.13 in
Outer diameter (OD)0.22 in

General Specifications

Colour CodeYellow
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
