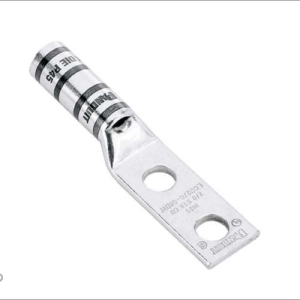

L2/0-1434W UL Listed 2/0 AWG T2 Copper Lug | Inspection Window | 2-Hole 3/8″ Bolt | 1″ Spacing

Description

  • Feature : Precision-engineered compression lug with transparent inspection window, manufactured from high-conductivity T2 copper, designed for 2/0 AWG cables with dual 3/8″ bolt holes at 1″ center spacing

  • Advantage : Inspection window allows visual verification of wire insertion depth while dual-hole mounting provides superior mechanical stability; T2 copper ensures optimal conductivity and UL listing guarantees safety compliance

  • Benefit : Prevents installation errors through visual inspection, ensures reliable connections in high-vibration environments, and meets international safety standards for industrial applications

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Cable Range: 2/0 AWG

  • Bolt Size: 3/8″ (Dual Holes)

  • Hole Spacing: 1″ Center

  • Mounting: 2-Hole Pattern

  • Special Feature: Inspection Window

  • Certification: UL Listed

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial power distribution, electrical panels, control systems, and applications requiring verified, secure connections for 2/0 AWG conductors with installation quality assurance.

Send email to us

Dimensions

Bolt Size3/8 in
Hole Spacing(H)1.00 in
Tang Width (C)0.83 in
Barrel length (B)1.50 in
Overall length (L)3.76 in
Inner diameter (ID)0.45 in
Outer diameter (OD)0.56 in

General Specifications

ColourBlack
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
