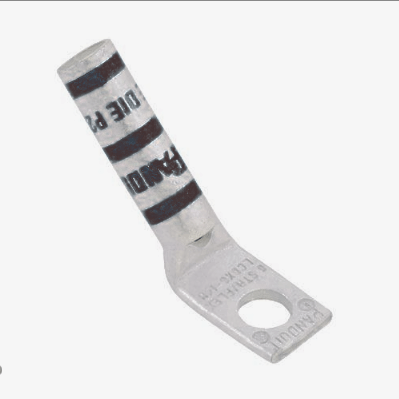

L2/0-38HW 45° Compression Lug | 2/0 AWG | 3/8" Stud | Inspection Window | High-Purity Copper | Black
L2/0-38HW 45° Compression Lug | 2/0 AWG | 3/8" Stud | Inspection Window | High-Purity Copper | Black
L2/0-38HW 45° Compression Lug | 2/0 AWG | 3/8" Stud | Inspection Window | High-Purity Copper | Black

L2/0-38HW 45° Compression Lug | 2/0 AWG | 3/8″ Stud | Inspection Window | High-Purity Copper

Description

The ‌GPH1.5-3‌ tube terminals deliver ‌premium T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌AWG16 (1.5mm²) capacity‌ for compact wiring applications
  • ‌GPH standard barrel‌ for secure wire connections
  • ‌5-10μm tin plating‌ for enhanced corrosion resistance
  • ‌Cold-forged construction‌ (UL486A/B compliant)
  • ‌-60°C to +200°C operational range‌

‌Applications:‌ Ideal for industrial control panels, automotive wiring, and heavy-duty electrical systems.

Send email to us

Dimensions

Bolt Size3/8 in
Tang Width (C)0.83 in
Barrel length (B)1.50 in
Overall length (L)2.31 in
Inner diameter (ID)0.45 in
Outer diameter (OD)0.56 in

General Specifications

ColourBlack
MaterialCopper
Tongue TypeStandard
Tongue Angle45 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
