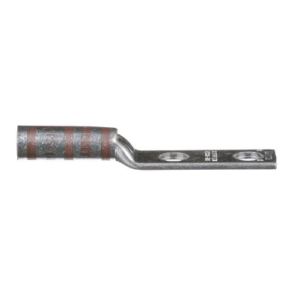

L2-1034/W Premium #2 AWG T2 Copper Lug | 2-Hole #10 Stud | 3/4″ Spacing | Brown Die Code

Description

  • Feature : Precision-engineered 2-hole lug manufactured from premium T2 copper, designed for #2 AWG wire with dual #10 stud holes at 3/4″ center spacing and brown die coding

  • Advantage : T2 copper construction delivers superior conductivity and corrosion resistance, while dual-hole mounting ensures exceptional mechanical stability in high-vibration applications

  • Benefit : Provides reliable, long-lasting connections in demanding environments, reduces maintenance costs, and enables quick circuit identification through brown color coding

Data Overview

  • Material: Premium T2 Copper

  • Wire Size: #2 AWG

  • Stud Size: #10 (Dual Holes)

  • Hole Spacing: 3/4″ Center

  • Mounting: 2-Hole Pattern

  • Color Code: Brown Die

  • Standards: UL 486A Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control systems, electrical panels, power distribution equipment, and applications requiring secure, vibration-resistant connections for #2 AWG conductors.

Send email to us

Dimensions

Bolt Size#10 in
Hole Spacing(H)3/4 in
Tang Width (C)0.60 in
Barrel length (B)1.25 in
Overall length (L)2.85 in
Inner diameter (ID)0.31 in
Outer diameter (OD)0.42 in

General Specifications

ColourBrown
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
