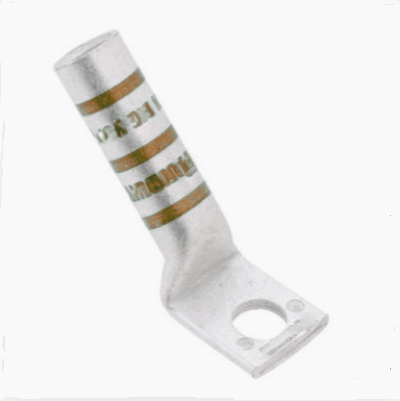

L2-14H/W 45° Angled Compression Lug | T2 Copper Material | 2 AWG | 1/4″ Stud | Single Hole | Code Brown

Description

This 45-degree angled compression lug is manufactured from high-conductivity T2 copper, ensuring optimal electrical performance and corrosion resistance. Designed for 2 AWG cable applications, it features a 1/4-inch stud connection and single-hole mounting configuration. The angled tongue design provides exceptional spatial flexibility in tight installation environments. Code brown insulation enables quick visual identification in electrical systems.

Technical Specifications:

  • Material: T2 Copper

  • Cable Range: 2 AWG

  • Stud Size: 1/4 Inch

  • Mounting: Single Hole

  • Tongue Angle: 45 Degrees

  • Insulation: Code Brown

  • Standards: UL 486A, CSA, RoHS

Application Scenarios:
Perfect for switchgear installations, industrial control panels, power distribution equipment, renewable energy systems, and electrical panels where space-constrained, high-reliability connections are required.

Send email to us

Dimensions

Bolt Size1/4 in
Tang Width (C)0.60 in
Barrel length (B)1.25 in
Overall length (L)1.93 in
Inner diameter (ID)0.31 in
Outer diameter (OD)0.42 in

General Specifications

ColourBrown
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
