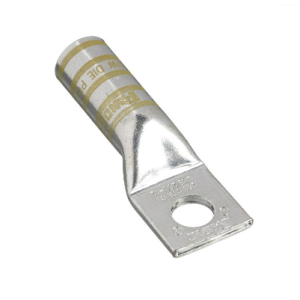

L250-78/W 250 MCM compression lug with long barrel design, made from T2 copper with 7/8" stud hole and yellow color coding.
L250-78/W 250 MCM compression lug with long barrel design, made from T2 copper with 7/8" stud hole and yellow color coding.
L250-78/W 250 MCM compression lug with long barrel design, made from T2 copper with 7/8" stud hole and yellow color coding.

L250-78/W 250 MCM T2 Copper Compression Lug | Long Barrel | 7/8″ Stud | Yellow Code

Description

  • Feature : Heavy-duty long barrel compression lug manufactured from high-conductivity T2 copper, designed for 250 MCM cables with 7/8″ stud hole and yellow color coding

  • Advantage : T2 copper construction ensures maximum current-carrying capacity and excellent conductivity, while long barrel design provides superior crimp integrity and mechanical strength

  • Benefit : Delivers reliable power transmission in high-current applications, reduces installation time with secure crimping performance, and enables easy circuit identification through yellow coloring

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Cable Range: 250 MCM

  • Stud Size: 7/8″

  • Barrel Type: Long Barrel

  • Color Code: Yellow

  • Conductivity: ≥98% IACS

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial power distribution systems, electrical substations, renewable energy installations, and heavy-duty applications requiring reliable high-current connections.

Send email to us

Dimensions

Bolt Size7/8 in
Tang Width (C)1.25 in
Barrel length (B)1.62 in
Overall length (L)3.85 in
Inner diameter (ID)0.63 in
Outer diameter (OD)0.77 in

General Specifications

ColourYellow
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
