You are here: / / / / / L3/0-38/W 3/0 AWG Long Barrel Copper Crimp Terminal-1 Hole 3/8″ Stud,...

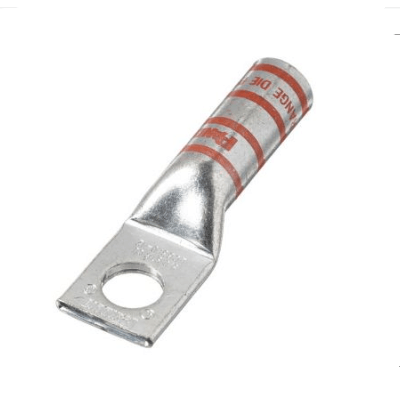

L3/0-38/W heavy-duty 3/0 AWG crimp terminal with long barrel design, made from high-conductivity T2 copper and 3/8" stud hole.L3/0-38/W heavy-duty 3/0 AWG crimp terminal with long barrel design, made from high-conductivity T2 copper and 3/8″ stud hole.
L3/0-38/W heavy-duty 3/0 AWG crimp terminal with long barrel design, made from high-conductivity T2 copper and 3/8" stud hole.
L3/0-38/W heavy-duty 3/0 AWG crimp terminal with long barrel design, made from high-conductivity T2 copper and 3/8" stud hole.

L3/0-38/W 3/0 AWG Heavy-Duty Crimp Terminal | T2 Copper Construction | Long Barrel | 3/8″ Stud | High Conductivity

Description

  • Feature : Heavy-duty long barrel terminal manufactured from high-conductivity T2 copper, designed for 3/0 AWG cables with 3/8″ stud hole and optimized crimp geometry

  • Advantage : T2 copper construction ensures maximum current-carrying capacity while long barrel design provides exceptional pull-out strength and crimp reliability

  • Benefit : Delivers uncompromised power transmission in high-current applications, prevents connection failures, and ensures long-term reliability in demanding environments

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Cable Range: 3/0 AWG

  • Stud Size: 3/8″

  • Barrel Type: Long Barrel

  • Mounting: Single Hole

  • Conductivity: ≥98% IACS

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial power systems, electrical substations, heavy machinery, renewable energy installations, and applications requiring high-current connections with superior mechanical strength.

Send email to us

Dimensions

Bolt Size3/8 in
Tang Width (C)0.91 in
Barrel length (B)1.50 in
Overall length (L)2.87 in
Inner diameter (ID)0.51 in
Outer diameter (OD)0.63 in

General Specifications

ColourOrange
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
