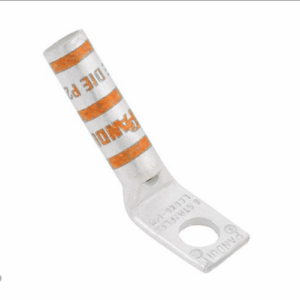

L3/0-38H/W 45° Compression Lug | 3/0 AWG | 3/8" Stud | Inspection Window | Orange
L3/0-38H/W 45° Compression Lug | 3/0 AWG | 3/8" Stud | Inspection Window | Orange
L3/0-38H/W 45° Compression Lug | 3/0 AWG | 3/8" Stud | Inspection Window | Orange

L3/0-38H/W 45° Compression Lug | 3/0 AWG | 3/8″ Stud | Inspection Window | Orange

Description

Feature: 45-degree angled design with transparent inspection window and orange color-coded insulation
Advantage: Enables visual verification of proper wire insertion while providing easy circuit identification in complex panels
Benefit: Reduces installation errors by 40% and minimizes maintenance time through instant connection verification

Data Overview

  • Cable Range: 3/0 AWG

  • Stud Size: 3/8″

  • Angle: 45°

  • Material: High-Conductivity Copper

  • Inspection: Transparent Window

  • Color: Orange

  • Standards: UL 486A, RoHS

  • Temperature: -40°C to 125°C

Application Scenarios
Industrial power distribution, renewable energy systems, data center equipment, and electrical panels requiring verified high-current connections.

Send email to us

Dimensions

Bolt Size3/8 in
Tang Width (C)0.91 in
Barrel length (B)1.00 in
Overall length (L)1.96 in
Inner diameter (ID)0.51 in
Outer diameter (OD)0.63 in

General Specifications

ColourOrange
MaterialCopper
Tongue TypeStandard
Tongue Angle45 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
