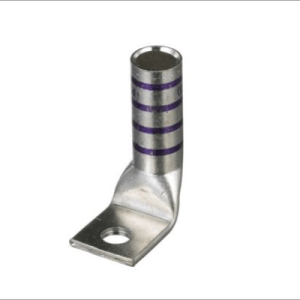

L4/0-38F/W 4/0 AWG Copper 1-Hole 90 Degree Angled Ring Terminal – Heavy Duty Lug

L4/0-38F/W 90° Heavy Duty Ring Terminal | T2 Copper | 4/0 AWG | 3/8″ Stud | Single Hole

Description

Feature: 90-degree angled design manufactured from T2 copper with single-hole mounting for 3/8″ stud connections
Advantage: Provides optimal conductivity and heat dissipation while enabling efficient installation in tight spaces
Benefit: Ensures reliable power transmission in high-amperage circuits and reduces installation time in compact electrical panels

Data Overview

Material: T2 Copper
Cable Range: 4/0 AWG
Stud Size: 3/8″
Mounting: Single Hole
Angle: 90°
Type: Heavy Duty Ring Terminal
Standards: UL 486A, RoHS, REACH
Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial power distribution, renewable energy systems, electrical switchgear, and heavy equipment requiring reliable, space-efficient high-current connections.

Send email to us

Dimensions

Bolt Size	3/8 in
Tang Width (C)	1.02 in
Barrel length (B)	1.62 in
Overall length (L)	2.48 in
Inner diameter (ID)	0.56 in
Outer diameter (OD)	0.70 in

General Specifications

Colour	Purple
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
