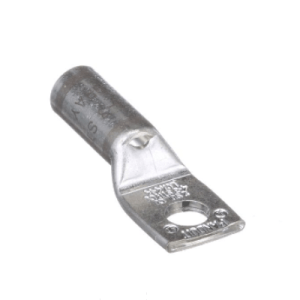

L4-14/W 4 AWG straight compression terminal with tin-plated T2 copper construction, long barrel design, 1/4" stud hole and gray color coding.L4-14/W 4 AWG straight compression terminal with tin-plated T2 copper construction, long barrel design, 1/4″ stud hole and gray color coding.
L4-14/W 4 AWG straight compression terminal with tin-plated T2 copper construction, long barrel design, 1/4" stud hole and gray color coding.
L4-14/W 4 AWG straight compression terminal with tin-plated T2 copper construction, long barrel design, 1/4" stud hole and gray color coding.

L4-14/W 4 AWG Tinned T2 Copper Terminal | Long Barrel | 1/4″ Stud | Straight | Gray Code

Description

  • Feature : Straight barrel design manufactured from high-conductivity T2 copper with full tin plating, featuring extended barrel length for 4 AWG cables with 1/4″ stud hole and gray insulation

  • Advantage : Tin plating provides enhanced corrosion resistance while T2 copper base ensures optimal conductivity, and long barrel design offers maximum crimp integrity

  • Benefit : Ensures long-term reliability in harsh environments, reduces maintenance costs, and provides reliable power transmission in industrial applications

Data Overview

  • Base Material: T2 Copper (High Conductivity)

  • Plating: Full Tin Coating

  • Cable Range: 4 AWG

  • Stud Size: 1/4″ (6.4mm)

  • Barrel Type: Long Barrel

  • Mounting: Single Hole

  • Design: Straight Tongue

  • Color Code: Gray

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control panels, power distribution systems, electrical cabinets, marine applications, and environments requiring corrosion-resistant, reliable connections.

Send email to us

Dimensions

Bolt Size1/4 in
Tang Width (C)0.50 in
Barrel length (B)1.12 in
Overall length (L)2.04 in
Inner diameter (ID)0.28 in
Outer diameter (OD)0.38 in

General Specifications

ColourGray
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
