您现在的位置： / / / / / L6-08F/W 6 AWG 90° Copper Compression Lug, 1-Hole Terminal, #8 Stud, Long ...

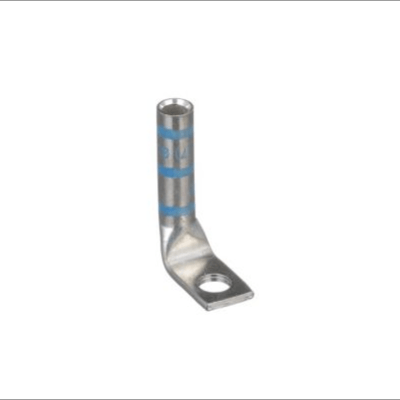

6 AWG 90-degree angled compression lug with T2 copper construction, #8 stud hole, long barrel, and blue color coding for electrical identification.6 AWG 90-degree angled compression lug with T2 copper construction, #8 stud hole, long barrel, and blue color coding for electrical identification.
6 AWG 90-degree angled compression lug with T2 copper construction, #8 stud hole, long barrel, and blue color coding for electrical identification.
6 AWG 90-degree angled compression lug with T2 copper construction, #8 stud hole, long barrel, and blue color coding for electrical identification.

6 AWG 90° T2 Copper Compression Lug | #8 Stud | Standard Barrel | Blue Code | Industrial Electrical Terminal

Description

  • Feature (特征): Precision-formed 90-degree tongue with standard barrel from T2 copper, designed for #8 stud and single-hole mounting, featuring blue color coding

  • Advantage (优势): T2 copper ensures superior conductivity and corrosion resistance while the right-angle design saves space in compact electrical panels

  • Benefit (好处): Provides reliable power transmission in confined spaces, reduces installation time, and enables quick circuit identification through color coding

Data Overview

  • Material: T2 Copper

  • Cable Range: 6 AWG

  • Stud Size: #8

  • Mounting: Single Hole

  • Tongue Angle: 90°

  • Barrel Type: Standard

  • Color Code: Blue

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial control panels, power distribution boxes, electrical enclosures, and applications requiring space-efficient, high-reliability connections with visual identification.

Send email to us

Dimensions

Bolt Size#8 in
Tang Width (C)0.42 in
Barrel length (B)1.12 in
Overall length (L)1.48 in
Inner diameter (ID)0.22 in
Outer diameter (OD)0.31 in

General Specifications

Colourblue
MaterialCopper
Tongue TypeStandard
Tongue Angle90 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
