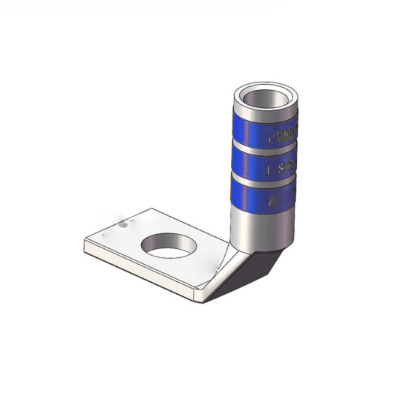

L6-56F/W one hole 90°Copper Lug AWG 6# with inspection window Blue

Description

This L6-56F/W copper lug features a 90° single-hole design (AWG 6 compatible), integrated blue inspection window for quick visual verification. Made of high-conductivity copper with tinned finish for durability, ideal for industrial wiring and panel installations.

Send email to us

Dimensions

Bolt Size	5/16 in
Tang Width (C)	0.52 in
Barrel length (B)	1.12 in
Overall length (L)	1.49 in
Inner diameter (ID)	0.22 in
Outer diameter (OD)	0.31 in

General Specifications

Colour Code	Blue
Material	Copper
Tongue Type	Standard
Tongue Angle	90 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
