Heavy-duty 6 AWG compression terminal made from T2 copper with long barrel design, 5/16" bolt hole and blue die code identification.Heavy-duty 6 AWG compression terminal made from T2 copper with long barrel design, 5/16″ bolt hole and blue die code identification.
Heavy-duty 6 AWG compression terminal made from T2 copper with long barrel design, 5/16" bolt hole and blue die code identification.
Heavy-duty 6 AWG compression terminal made from T2 copper with long barrel design, 5/16" bolt hole and blue die code identification.

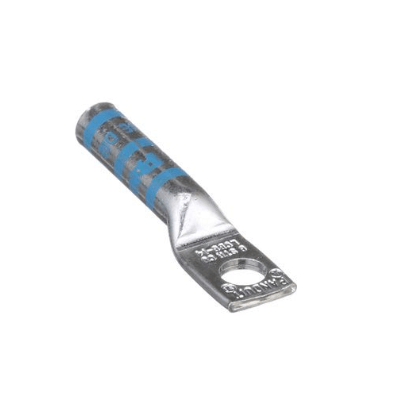

Heavy-Duty 6 AWG Copper Terminal – Long Barrel, 1-Hole for 5/16 Inch (7.9mm) Bolt, Blue Die Code

Description

  • Feature : Heavy-duty construction with extended long barrel manufactured from high-conductivity T2 copper, featuring single-hole mounting for 5/16″ bolt and blue die code insulation

  • Advantage : Long barrel design ensures maximum crimp integrity and wire retention while T2 copper provides superior current-carrying capacity and mechanical durability

  • Benefit : Delivers reliable power transmission in demanding environments, reduces connection failures, and enables easy circuit identification through blue color coding

Data Overview

  • Material: T2 Copper (High Conductivity)

  • Cable Range: 6 AWG

  • Bolt Size: 5/16″ (7.9mm)

  • Barrel Type: Long Barrel

  • Mounting: Single Hole

  • Color Code: Blue Die

  • Standards: UL 486A, RoHS Compliant

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Industrial power distribution, electrical control panels, heavy equipment wiring, and applications requiring reliable, high-current connections with superior crimp performance.

Send email to us

Dimensions

Bolt Size5/16 in
Tang Width (C)0.45 in
Barrel length (B)1.12 in
Overall length (L)1.80 in
Inner diameter (ID)0.22 in
Outer diameter (OD)0.31 in

General Specifications

ColourBlue
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
