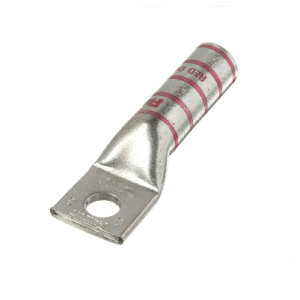

L8-38W high-voltage electrical lug for #8 AWG cable, featuring tinned copper construction, long barrel design, 3/8" bolt hole, and 35kV voltage rating.L8-38W high-voltage electrical lug for #8 AWG cable, featuring tinned copper construction, long barrel design, 3/8″ bolt hole, and 35kV voltage rating.
L8-38W high-voltage electrical lug for #8 AWG cable, featuring tinned copper construction, long barrel design, 3/8" bolt hole, and 35kV voltage rating.
L8-38W high-voltage electrical lug for #8 AWG cable, featuring tinned copper construction, long barrel design, 3/8" bolt hole, and 35kV voltage rating.

L8-38W 35kV Rated Tinned Copper Lug | #8 AWG | Long Barrel | 3/8″ Bolt | Single HoleMax-Crimp | Red

Description

  • Feature : High-voltage rated lug manufactured from tinned copper with extended barrel design, featuring 3/8″ bolt hole and optimized crimping geometry

  • Advantage : Tin plating provides superior corrosion resistance while long barrel ensures maximum crimp integrity for secure high-voltage connections

  • Benefit : Ensures reliable performance in 35kV electrical systems, reduces maintenance requirements, and provides long-term durability in demanding applications

Data Overview

  • Material: Tinned Copper

  • Cable Range: #8 AWG

  • Voltage Rating: 35kV

  • Bolt Size: 3/8″

  • Barrel Type: Long Barrel

  • Mounting: Single Hole

  • Plating: Full Tin Coating

  • Standards: UL 486A, IEEE Standard

  • Temperature Rating: -40°C to 125°C

Application Scenarios
High-voltage switchgear, power distribution systems, transformer connections, renewable energy installations, and electrical applications requiring 35kV rated connections.

Send email to us

Dimensions

Bolt Size3/8 in
Tang Width (C)0.58 in
Barrel length (B)0.75 in
Overall length (L)1.75 in
Inner diameter (ID)0.18 in
Outer diameter (OD)0.27 in

General Specifications

ColourRed
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
