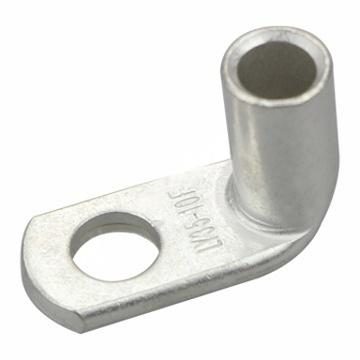

LYF90-10/4 LYF 90°Copper Tube Terminal Tin-Plated without inspection window

Description

The ‌LYF90-10/4‌ tube terminals deliver ‌premium T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌AWG10 (5.3mm²) capacity‌ for robust current handling
  • ‌90° angled design‌ for space-saving installations
  • ‌5-10μm tin plating‌ for enhanced corrosion resistance
  • ‌Cold-forged construction‌ (UL486A/B compliant)
  • ‌-60°C to +200°C operational range‌

‌Applications:‌ Ideal for industrial control panels, automotive wiring, and heavy-duty electrical systems.

Send email to us

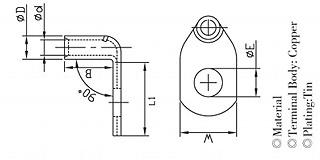

Dimensions

φE(mm)4.3
ΦD(mm)8
Φd(mm)5
W(mm)13
L2(mm)15
C(mm)18

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
