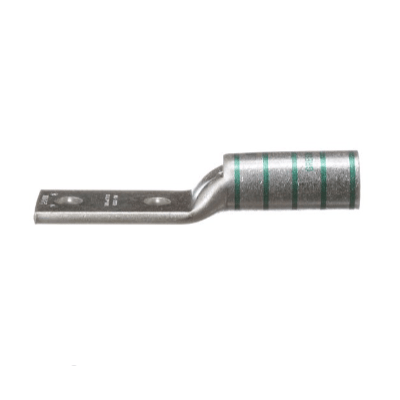

Front view of the Multi-Size Copper Compression Lug (6 AWG - 600 kcmil) with 2-hole 1/2 inch stud.
Front view of the Multi-Size Copper Compression Lug (6 AWG - 600 kcmil) with 2-hole 1/2 inch stud.
Front view of the Multi-Size Copper Compression Lug (6 AWG - 600 kcmil) with 2-hole 1/2 inch stud.

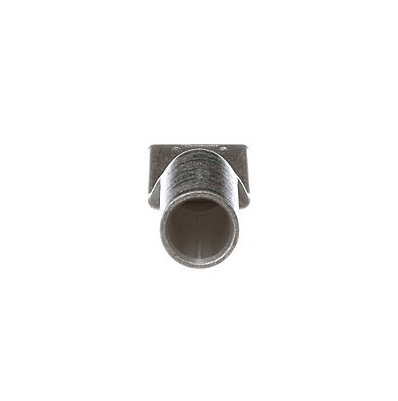

Close-up of the long barrel entry, showing the Green color code and the 2-3/4 inch strip length guide.
Close-up of the long barrel entry, showing the Green color code and the 2-3/4 inch strip length guide.
Back view highlighting the long barrel and quad certifications (NEBS, ABS) for high reliability.
Back view highlighting the long barrel and quad certifications (NEBS, ABS) for high reliability.

Multi-Size Compression Lug (6 AWG – 600 kcmil) | 2-Hole 1/2″ Stud, Long Barrel | ABS, NEBS 3 Certified

Description

  • Conductor Range: #6 AWG to 600 kcmil Copper (Universal Multi-Size Capability)

  • Configuration: Straight Tongue, 2-Hole Mount

  • Stud Size & Spacing: 1/2 Inch Studs (12.7 mm) with $1.75$ Inch Spacing (44.5 mm)

  • Barrel Type: Long Barrel (2.69 Length) with Inspection Window

  • Finish: Tin-Plated Copper

  • Crimping ID: Green Color Code (Panduit P94, Burndy 22)

  • Certifications: UL Listed, CSA Certified, ABS Approved, NEBS Level 3 (Quad-Certified)

Send email to us

Dimensions

Bolt Size1/2 in
Hole Spacing (H)1-3/4 in
Tang Width (C)1.70 in
Barrel length (B)2.69 in
Overall length (L)6.36 in
Inner diameter (ID)0.92 in
Outer diameter (OD)1.19 in

General Specifications

ColourGreen
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
