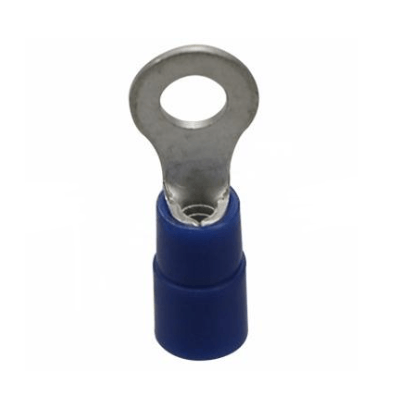

NL2-3 Nylon Round Insulated Terminal 16-14AWG 1.5-2.5m㎡ Blue Cold Press Electrical Wire End

NL2-3 Nylon Insulated Terminal | T2 Copper Core | 16-14 AWG | 1.5-2.5mm² | Blue Color

Description

This nylon-insulated electrical terminal features a precision-engineered T2 copper core, ensuring optimal conductivity and corrosion resistance. Designed for 16-14 AWG (1.5-2.5mm²) wire applications, it features a cold-press crimp design for secure connections. The blue nylon insulation provides mechanical protection and color-coded identification.

Technical Specifications:

Conductor Material: T2 Copper
Wire Range: 16-14 AWG (1.5-2.5mm²)
Insulation: Nylon
Color: Blue
Type: Round Insulated Terminal
Application: Cold Press Connection

Application Scenarios:
Ideal for automotive wiring, control panels, appliance manufacturing, and low-voltage electrical systems where reliable insulated connections are required.

Send email to us

Dimensions

φE(mm)	3.7
ΦD(mm)	4.6
Φd(mm)	2.3
W(mm)	8.5
B(mm)	11.3
L(mm)	23.2
T(mm)	0.8

General Specifications

Material	Pure Copper
Copper Content	≥99.9%
Surface	Tin-Plated
Tongue Angle	Straight
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
