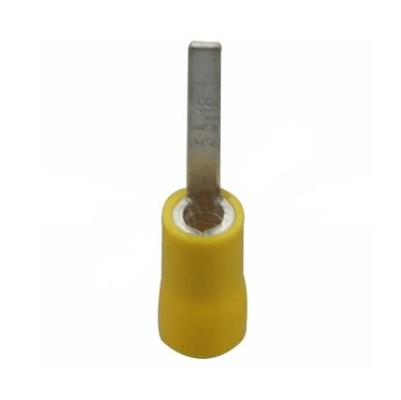

Pin5.5 Pin insulated Terminal 12-10AWG 4-6m㎡ Connection Terminal yellow

Description

These yellow insulated pin terminals (5.5mm) support 12-10AWG (4-6mm²) wires, featuring PVC insulation for safety. Designed for quick crimp connections, suitable for automotive, marine, and electrical panel applications.

Send email to us

Dimensions

D(mm)	6.6
d(mm)	3.5
F(mm)	2.7
B(mm)	13.5
L(mm)	27.3
T(mm)	1

General Specifications

Material	Pure Copper
Copper Content	≥99.9%
Surface	Tin-Plated
Tongue Angle	Straight
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
