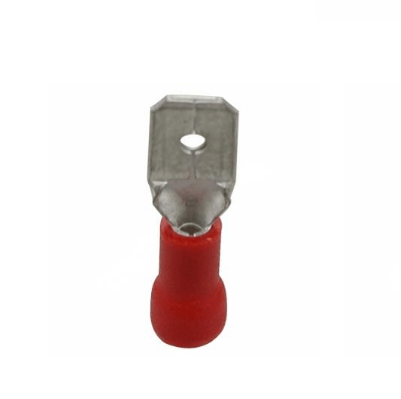

RM110-5 Male Spade Insulated Terminal 22-16AWG RED Cable Lug

Description

The ‌RM110-5‌ male spade terminals are crafted from ‌high-purity T2 electrolytic copper‌ (99.9% conductivity) with:

‌22-16AWG (0.5-1.25mm²) capacity‌ for low-current applications
‌Male spade design‌ for easy mating with female connectors
‌Red PVC insulation‌ for enhanced safety and visibility
‌Durable construction‌ for long-term performance

‌Applications:‌ Ideal for automotive wiring, control panels, and compact electrical assemblies requiring secure connections.

Send email to us

Dimensions

T(mm)	0.5
ΦD(mm)	3.6
Φd(mm)	1.8
W(mm)	2.8
B(mm)	10
L(mm)	18

General Specifications

Material	Pure Copper
Copper Content	≥99.9%
Color	Red
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
