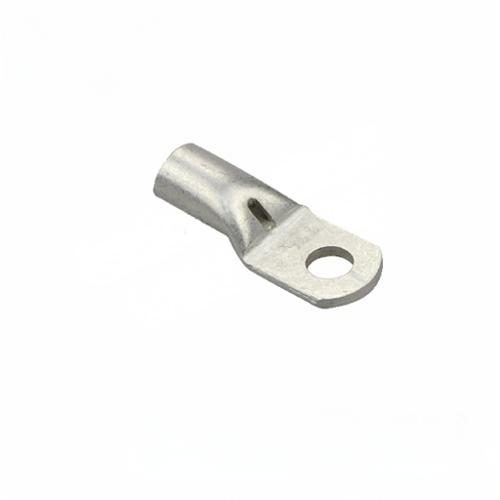

S-T1.5-4 Copper Cable Terminal 22-16AWG 0.5-1.5mm² Cable Lug

Description

The ‌S-T1.5-4‌ copper terminals are crafted from ‌high-purity T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌22-16AWG (0.5-1.5mm²) capacity‌ for low-current applications
  • ‌Compact design‌ for space-saving installations
  • ‌Tin-plated surface‌ for enhanced corrosion resistance
  • ‌Durable construction‌ for long-term performance

‌Applications:‌ Ideal for automotive wiring, control panels, and compact electrical assemblies requiring reliable connections.

Send email to us

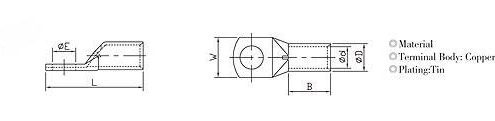

Dimensions

φE(mm)4.3
ΦD(mm)3.3
Φd(mm)1.8
W(mm)8.7
B(mm)7
L(mm)18

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
