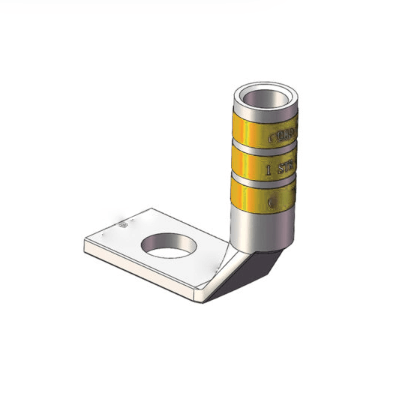

S1410-14FW 90°Copper Lug AWG14-10# one hole 1/4 standard barrel Yellow Color-Coded

Description

The S1410-14FW is a 90° angled copper lug engineered for secure wire termination in electrical setups.

Constructed with high-performance T2 red copper (delivering excellent conductivity, low contact resistance, and corrosion resistance), it fits AWG 14-10# wires, features a standard barrel for tight wire crimping, and includes 1 1/4″ hole for easy mounting.

Its yellow color coding allows quick identification during installation, making it ideal for automotive, industrial, and residential electrical projects requiring durable, consistent connections.

Send email to us

Dimensions

Bolt Size	1/4 in
Tang Width (C)	0.42 in
Barrel length (B)	0.38 in
Overall length (L)	0.94 in
Inner diameter (ID)	0.13 in
Outer diameter (OD)	0.22 in

General Specifications

Colour	Yellow
Material	Copper
Tongue Type	Standard
Tongue Angle	45 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
