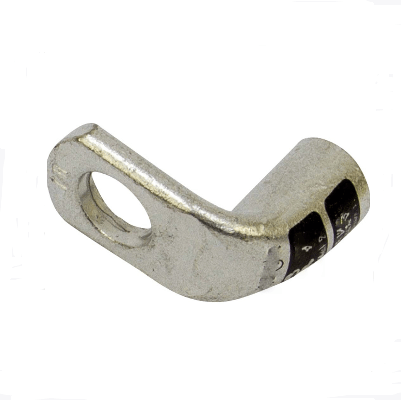

S2/0-38F/W 90° Short Barrel Compression Lug | T2 Copper | 2/0 AWG | 3/8" Stud | Black
S2/0-38F/W 90° Short Barrel Compression Lug | T2 Copper | 2/0 AWG | 3/8" Stud | Black
S2/0-38F/W 90° Short Barrel Compression Lug | T2 Copper | 2/0 AWG | 3/8" Stud | Black

S2/0-38F/W 90° Short Barrel Compression Lug | T2 Copper | 2/0 AWG | 3/8″ Stud | Black

Description

Feature: 90-degree short barrel design manufactured from T2 copper with single-hole mounting and black insulation
Advantage: Enables efficient right-angle connections in tight spaces while providing high conductivity in compact installations
Benefit: Saves valuable panel space and simplifies wiring in dense electrical enclosures

Data Overview

  • Material: T2 Copper

  • Cable Range: 2/0 AWG

  • Stud Size: 3/8″

  • Mounting: Single Hole

  • Tongue Angle: 90°

  • Barrel Type: Short Barrel

  • Insulation Color: Black

  • Standards: UL 486A, RoHS

  • Temperature Rating: -40°C to 125°C

Application Scenarios
Electrical panels, control cabinets, power distribution boxes, and compact industrial equipment where space optimization is critical.

Send email to us

Dimensions

Bolt Size3/8 in
Tang Width (C)0.83 in
Barrel length (B)1.50 in
Overall length (L)2.30 in
Inner diameter (ID)0.45 in
Outer diameter (OD)0.56 in

General Specifications

ColourBlack
MaterialCopper
Tongue TypeStandard
Tongue Angle90 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
