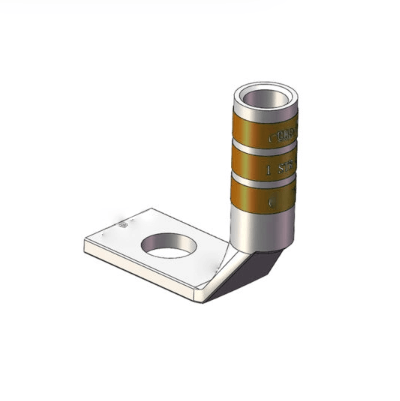

S2-14FW 2AWG 90°Copper Lug one hole1/4 standard barrel Brown Color Coded lugs

Description

The ‌S2-14FW‌ 90° lug delivers:

  • ‌Premium T2 copper‌ (99.99% purity) with 58.0MS/m conductivity, ensuring minimal energy loss in high-current circuits
  • ‌2AWG compatibility‌ for heavy-duty power distribution in industrial and renewable energy systems
  • ‌One-hole 1/4″ barrel‌ design for secure mechanical fixation, reducing vibration-induced loosening
  • ‌Brown color-coded‌ for quick identification in complex wiring environments
  • ‌Tin-plated surface‌ to resist oxidation and hydrogen embrittlement in -55°C to 150°C environments1

‌Key Advantages:‌

  1. ‌Material Integrity‌: Annealed T2 copper resists thermal fatigue and maintains structural stability under cyclic loads
  2. ‌Certifications‌: Complies with UL 486A and IEC 61238-1 standards for power transmission reliability
  3. ‌Installation Efficiency‌: Precision-engineered barrel ensures uniform compression with standard crimping tools
Send email to us

Dimensions

Bolt Size1/4 in
Tang Width (C)0.61 in
Barrel length (B)0.57 in
Overall length (L)1.24 in
Inner diameter (ID)0.31 in
Outer diameter (OD)0.42 in

General Specifications

ColourBrown
MaterialCopper
Tongue TypeStandard
Tongue Angle90 Angle
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
