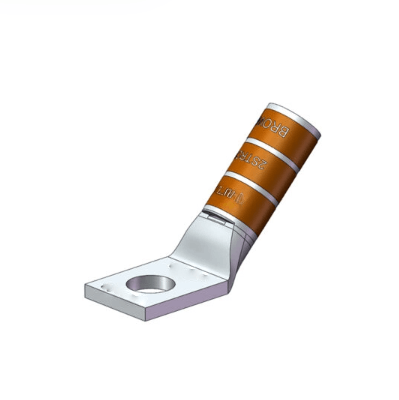

S2-14HW one hole 1/4 45°Copper Lug AWG 2# standard barrel

Description

The ‌S2-14HW‌ 45° copper lug is engineered with:

  • ‌High-purity T2 electrolytic copper‌ (99.9% conductivity) for superior performance
  • ‌45° bend design‌ for optimal wire routing in tight spaces
  • ‌AWG 2# capacity‌ for high-current applications
  • ‌1/4″ standard barrel‌ for universal connector compatibility
  • ‌Cold-pressed construction‌ ensuring durable, low-resistance connections

‌Applications:‌ Ideal for industrial power distribution, automotive wiring, and electrical systems requiring robust grounding solutions.

Send email to us

Dimensions

Bolt Size1/4 in
Tang Width (C)0.61 in
Barrel length (B)0.57 in
Overall length (L)1.27 in
Inner diameter (ID)0.31 in
Outer diameter (OD)0.42 in

General Specifications

ColourBrown
MaterialCopper
Tongue TypeStandard
Tongue Angle45 degree
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
