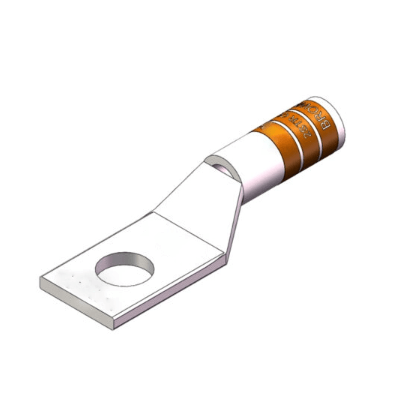

S2-14W Ground Lug AWG2# One hole 1/4 standard barrel with inspection window

Description

The ‌S2-14W‌ grounding lug delivers ‌premium T2 electrolytic copper‌ (99.9% conductivity) with:

‌Transparent inspection window‌ for real-time cable monitoring
‌1/4″ (6.35mm) standard barrel‌ for universal terminal compatibility
‌Corrosion-resistant finishes‌:
- Standard green polymer coating (safety color-coding)
- Optional nickel plating (5-10μm thickness)
‌Cold-forged AWG2 (33.6mm²) terminal‌ (meets UL486A/B)
‌-60°C to +200°C operational range‌

‌Applications:‌ Ideal for EV charging stations, data center grounding, and industrial machinery. Compliant with IEEE 80, NEC 250.84.

Send email to us

Dimensions

Bolt Size	1/4 in
Tang Width (C)	0.61 in
Barrel length (B)	0.57 in
Overall length (L)	1.46 in
Inner diameter (ID)	0.31 in
Outer diameter (OD)	0.42 in

General Specifications

Colour	brown
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
