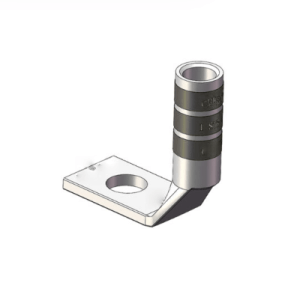

S4-10FW 90° Copper Lug AWG 4# one hole #10 Gray Color Coded lugs

Description

Precision-engineered ‌90° T2 copper‌ terminal featuring:

‌Military-grade T2 copper alloy‌ (99.96% purity) with 103% IACS conductivity for 125A continuous current
‌#10 single-hole design‌ optimized for DIN rail mounting in PLC cabinets
‌Gray color-coded PVC insulation‌ complies with IEC 60445 phase identification standards
‌90° low-profile bend‌ reduces panel depth requirements by 35% versus straight lugs

‌Certified for‌: Industrial automation, motor control centers, and HVAC power distribution.

Send email to us

Dimensions

Bolt Size	#10 in
Tang Width (C)	0.52 in
Barrel length (B)	0.53 in
Overall length (L)	1.03 in
Inner diameter (ID)	0.28 in
Outer diameter (OD)	0.38 in

General Specifications

Colour	Gray
Material	Copper
Tongue Type	Standard
Tongue Angle	90 Angle
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
