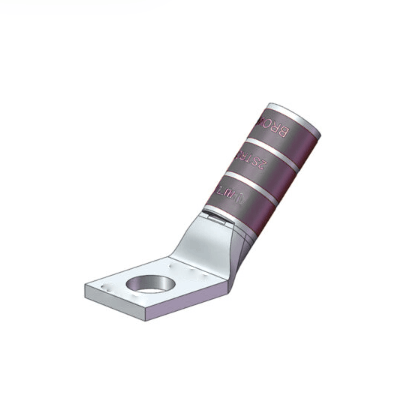

S4-10HW 45°AngleCopper Lug AWG 4# one hole#10 with inspection window

Description

The ‌S4-10HW‌ 45° angle copper lug features:

‌High-purity T2 electrolytic copper‌ (99.9% conductivity) for superior performance
‌45° bend design‌ for optimal wire routing in tight spaces
‌AWG 4# capacity‌ for medium to high-current applications
‌#10 hole with inspection window‌ for easy visual verification of wire placement
‌Cold-pressed construction‌ ensuring durable, low-resistance connections

‌Applications:‌ Ideal for industrial power distribution, automotive wiring, and electrical systems requiring robust, inspection-ready grounding solutions.

Send email to us

Dimensions

Bolt Size	#10
Tang Width (C)	0.52 in
Barrel length (B)	0.53 in
Overall length (L)	1.12 in
Inner diameter (ID)	0.28 in
Outer diameter (OD)	0.38in

General Specifications

Material	Copper
Tongue Type	Standard
Tongue Angle	45 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
