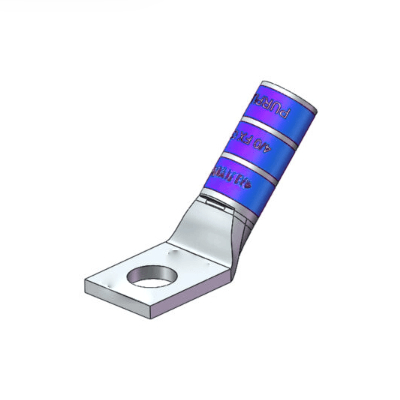

S6-10HW 45°Copper Lug AWG 6# one hole#8-#10 standard barrel with inspection window Blue

Description

Premium ‌T2 copper‌ terminal featuring:

‌45° angled design‌ with #8-#10 hole compatibility (5/16″ center spacing) for flexible panel layouts
‌Transparent inspection window‌ allows visual verification of wire insertion depth per IEC 61238-1 Class B standards
‌Blue anti-corrosion coating‌ protects against salt spray (>500hrs) in marine/RV applications (-30°C to 110°C)
‌Standard 5/8″ barrel‌ with hexagonal crimp zone ensures 100% IACS conductivity for 600V systems

‌UL 486C & RoHS compliant‌ — ideal for solar combiner boxes and EV charging stations.

Send email to us

Dimensions

Bolt Size	1/4 in
Tang Width (C)	0.68 in
Barrel length (B)	0.88 in
Overall length (L)	1.81 in
Inner diameter (ID)	0.36 in
Outer diameter (OD)	0.46 in

General Specifications

Bolt Size	#8-#10
Tang Width (C)	0.41 in
Barrel length (B)	0.50 in
Overall length (L)	1.06 in
Inner diameter (ID)	0.22 in
Outer diameter (OD)	0.31 in

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
