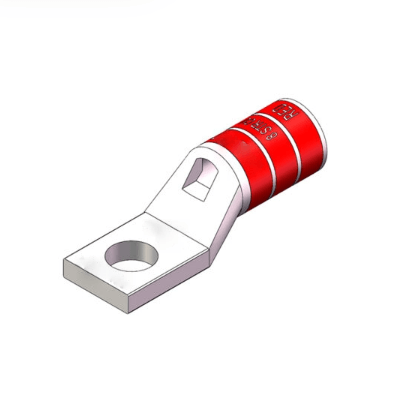

S8-10 ground Lugs AWG 8# one hole #8-#10 short barrel with inspection window,red

Description

The ‌S8-10‌ grounding lug delivers ‌premium T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌#8-#10 (8.3mm-5.2mm) short barrel‌ for secure terminal connections
  • ‌Red printed markings with inspection window‌ for quick identification
  • ‌Corrosion-resistant finishes‌:
    • Standard red polymer coating (safety color-coding)
    • Optional nickel plating (5-10μm thickness)
  • ‌Cold-forged AWG8 (8.37mm²) terminal‌ (meets UL486A/B)
  • ‌-60°C to +200°C operational range‌

‌Applications:‌ Ideal for industrial equipment, solar farms, and data center grounding. Compliant with IEEE 80, NEC 250.84.

Send email to us

Dimensions

Bolt Size#8-#10
Tang Width (C)0.41 in
Barrel length (B)0.44 in
Overall length (L)1.16 in
Inner diameter (ID)0.18 in
Outer diameter(OD)0.27 in

General Specifications

Colour CodeRed
MaterialCopper
Tongue TypeStandard
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
