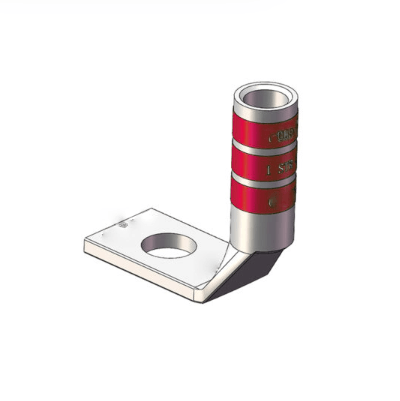

S8-10FW 90°Copper Lug AWG8# one hole#8-#10 standard barrel Red Color-Coded

Description

The S8-10FW is a 90° angled copper lug designed for reliable wire termination in electrical systems.

Made with high-conductivity T2 red copper (ensuring low contact resistance, strong corrosion resistance, and long-term stability), it fits AWG 8# wires, features a standard barrel for secure wire crimping, and includes 1 versatile #8-#10 hole for easy mounting.

Its red color coding enables quick identification during installation, making it ideal for automotive, industrial, and residential electrical projects needing durable, efficient connections.

Send email to us

Dimensions

Bolt Size	1/4 in
Tang Width (C)	0.68 in
Barrel length (B)	0.88 in
Overall length (L)	1.81 in
Inner diameter (ID)	0.36 in
Outer diameter (OD)	0.46 in

General Specifications

Colour	Green
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
