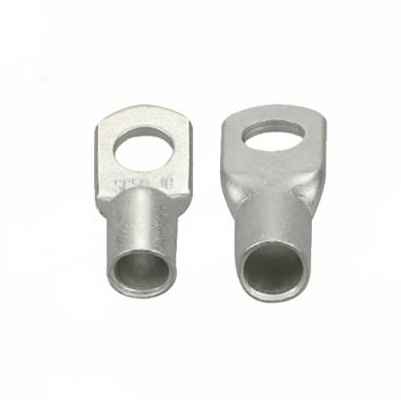

SC-XB4-4 Copper Tube Terminal 12-10AWG 4-6m㎡ SC-XB Type Battery Welding Cable lugs

Description

Premium T2 Copper Core‌: Manufactured from 99.95% pure T2 copper for superior conductivity in high-current (800A+) battery welding and heavy-duty electrical connections.

Extended 40mm Barrel Design‌: Features a robust 5.0mm wall thickness for secure crimping in industrial battery banks and welding equipment.

High-Temperature Resistance‌: Withstands up to 120°C continuous operation, ideal for demanding welding and energy storage environments.

Corrosion-Resistant Finish‌: Optional tin plating available for enhanced durability in harsh chemical or humid conditions.

Certified Performance‌: Complies with UL 486A-2025 and IEC 61238-1 standards, with laser-etched sizing for accuracy.

Dimensions

φE(mm)3.2
ΦD(mm)3.3
Φd(mm)1.8
W(mm)6.5
B(mm)6
L(mm)15.5

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
