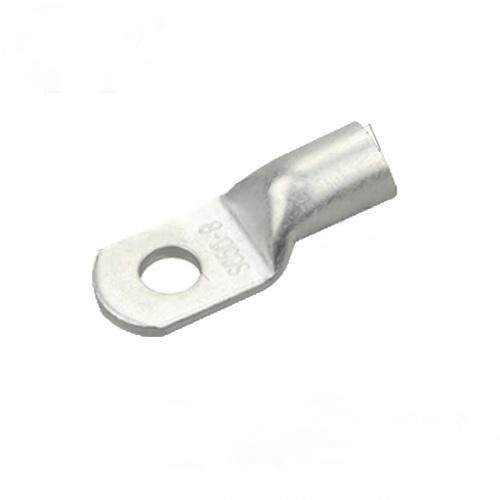

SC16-5NH SC-NH Copper Tube Terminal Without Inspection Hole 6AWG 10mm²

Description

The ‌SC16-5NH‌ tube terminals are crafted from ‌high-purity T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌6AWG (10mm²) capacity‌ for high-current applications
  • ‌No-inspection-hole design‌ for compact and efficient installations
  • ‌Durable construction‌ for long-term performance
  • ‌-60°C to +200°C operational range‌

‌Applications:‌ Ideal for automotive electronics, control panels, and high-power electrical assemblies requiring reliable connections.

Send email to us

Dimensions

φE(mm)5.2
ΦD(mm)7.1
Φd(mm)5.4
W(mm)12.0
B(mm)12
L(mm)30

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
