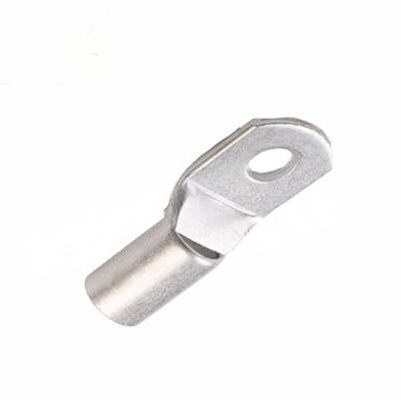

SC6-4 Copper Tube Terminal-SC Type 12-10AWG 4-6m㎡ Cold-Pressed Terminal

Description

  • Material:‌ Made of high-purity T2 copper, ensuring superior conductivity and corrosion resistance.
  • ‌Compatibility:‌ Designed for 12-10AWG wires (4-6mm²) with precise cold-pressed technology for secure connections.
  • ‌Application:‌ Ideal for industrial, automotive, and electrical installations requiring durable terminals.
Send email to us

Dimensions

φE(mm)4.2
ΦD(mm)5.5
Φd(mm)3.8
W(mm)10
B(mm)9
L(mm)24

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue AngleStraight
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
