Space-Saving 45° Elbow Compression Lug | 2 AWG, Long Barrel, 1/4″ Bolt Holes (5/8″ Spacing)-DL2-1458HW

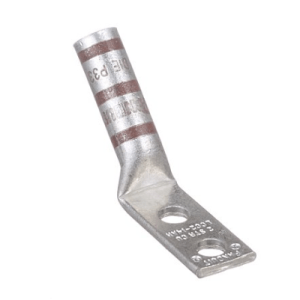

DL2-1458HW 45° T2 Copper Compression Lug | 2 AWG | Long Barrel | 1/4″ Bolt Holes | Space-Saving Design

Description

Feature: 45-degree elbow compression lug manufactured from premium T2 copper, featuring extended long barrel design for 2 AWG cables with dual 1/4″ bolt holes at 5/8″ center spacing

Advantage: Angled design optimizes space utilization in crowded electrical panels while T2 copper construction ensures maximum conductivity and the long barrel provides superior crimp integrity

Benefit: Enables efficient installation in confined spaces, reduces wiring complexity, and ensures reliable power transmission in compact electrical applications

Data Overview

Parameter	Specification
Material	T2 Copper (High Conductivity)
Cable Range	2 AWG
Bolt Size	1/4″ (Dual Holes)
Hole Spacing	5/8″ Center
Tongue Angle	45°
Barrel Type	Long Barrel
Design Type	Space-Saving Elbow
Standards	UL 486A, RoHS Compliant
Temperature Rating	-40°C to 125°C

Application Scenarios

Compact control panels with limited space
Electrical enclosures requiring angled connections
Industrial equipment with space constraints
Applications needing 2 AWG optimized terminations

Send email to us

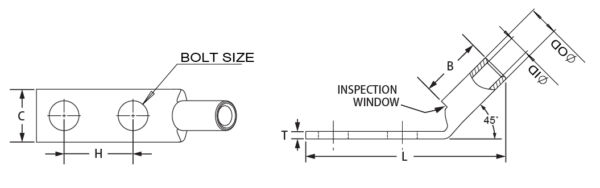

Dimensions

Bolt Size	1/4 in
Hole Spacing(H)	5/8 in
Tang Width (C)	0.60 in
Barrel length (B)	1.25 in
Overall length (L)	2.34 in
Inner diameter (ID)	0.31 in
Outer diameter (OD)	0.42 in

General Specifications

Colour	Brown
Material	Copper
Tongue Type	Standard
Tongue Angle	45 degree
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
