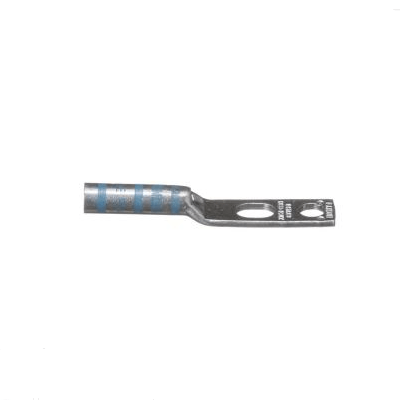

T2 Copper Compression Lug 6AWG 3/8″ Spacing – DL6-3834/W

Description

Material‌: Made of premium T2 copper for high electrical conductivity and corrosion resistance.
‌Specs‌: 6AWG rated, 3/8″ spacing, and 3/8″ long barrel for reliable cable termination.
‌Design‌: Code blue color-coded barrel for easy identification in electrical systems.
‌Usage‌: Ideal for industrial and automotive applications requiring durable compression connections.

Compliant with IEEE 80, NEMA, and IEC 62561 standards.

Dimensions

Bolt Size	3/8 in
Hole Spacing(H)	3/4 in
Tang Width (C)	0.58 in
Barrel length (B)	1.12 in
Overall length (L)	2.97 in
Inner diameter (ID)	0.22 in
Outer diameter (OD)	0.31 in

General Specifications

Colour	Blue
Material	Copper
Tongue Type	Standard
Tongue Angle	Straight
Surface	Tin-plated
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
