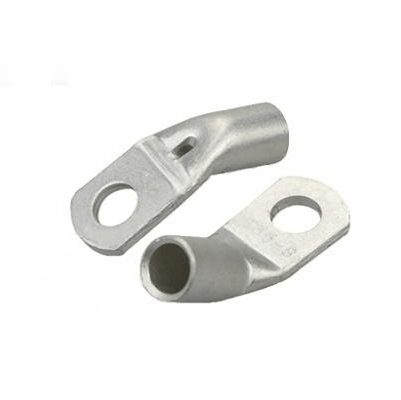

T45-25/6 45 Degree Angled copper tube terminals 4AWG 25mm² Cold-Pressed Terminal

Description

  • ‌Premium T2 Copper‌: High-purity oxygen-free copper (IACS ≥98%) ensures optimal conductivity and corrosion resistance, compliant with ASTM B187 standards.
  • ‌Space-Saving 45° Design‌: Angled tube terminals enable efficient wiring in confined areas, reducing bending stress on cables by 30%.
  • ‌Cold-Pressed Reliability‌: Precision-engineered for hydraulic crimping, eliminating solder joints and ensuring vibration-resistant connections.
  • ‌Industrial-Grade Compatibility‌: UL & RoHS certified, suitable for 25mm² (4AWG) cables with 3/8″ stud holes in automotive and renewable energy systems.
Send email to us

Dimensions

φE(mm)6.4
ΦD(mm)9.5
Φd(mm)7.1
W(mm)14
B(mm)13
L(mm)16

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue Angle45 degree
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
