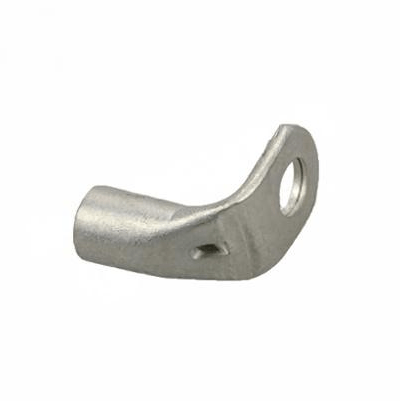

T90-16/5 Right Angle Automotive Crimp Terminal 6AWG 16m㎡ Copper Tin-plated Crimp Electric Cable Connector

Description

Dual-Protected Material‌: T2 oxygen-free copper core (IACS ≥98%) with matte tin plating, preventing oxidation in humid/acidic environments (salt spray test ≥96h).
‌Space-Saving Design‌: 90° right-angle configuration saves 40% space compared to straight terminals, ideal for tight engine compartments.
‌Automotive-Grade‌: UL & RoHS certified, operating temperature -40°C~125°C, compatible with standard 5/16″ studs.
‌Precision Engineering‌: Laser-marked size labels (6AWG/16mm²) and flared entry for quick crimping with hydraulic tools.

Dimensions

φE(mm)	5.3
ΦD(mm)	7.8
Φd(mm)	5.6
W(mm)	11.9
B(mm)	11
L(mm)	11.5

General Specifications

Material	Pure Copper
Copper Content	≥99.9%
Surface	Tin-Plated
Tongue Angle	90 Angle
Inspection Window	With inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage	35KV
Environmental Specifications
Operating Temperature	-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
Included	Lug
Packaging Quantity and UOM	1 pcs
Certifications
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
