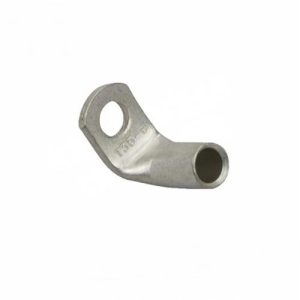

T90-6/4 T 90° Wiring Terminal 12-10AWG 4-6mm² T Terminal lugs

Description

The ‌T90-6/4‌ T-shaped 90° wiring terminals are crafted from ‌high-purity T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌12-10AWG (4-6mm²) capacity‌ for medium-current applications
  • ‌90° T-shaped design‌ for space-saving installations
  • ‌Tin-plated surface‌ for enhanced corrosion resistance and solderability
  • ‌Durable construction‌ for long-term performance

‌Applications:‌ Ideal for automotive wiring, control panels, and compact electrical assemblies requiring reliable connections.

Send email to us

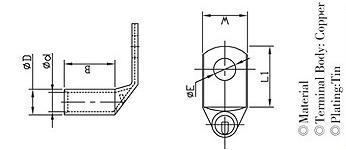

Dimensions

φE(mm)4.2
ΦD(mm)5.5
Φd(mm)3.8
W(mm)10.3
B(mm)10
C(mm)13

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
