您现在的位置： / / / / / TL10-6 Type Cold-Pressed Terminal 8AWG 10mm² Cable Lug

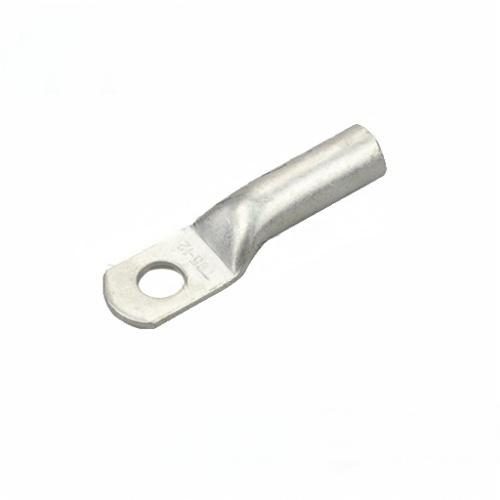

TL10-6 Type Cold-Pressed Terminal 8AWG 10mm² Cable Lug

Description

The ‌TL10-6‌ cold-pressed terminals are crafted from ‌high-purity T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌8AWG (10mm²) capacity‌ for high-current applications
  • ‌Cold-pressed construction‌ for superior mechanical strength
  • ‌Tin-plated surface‌ for enhanced corrosion resistance
  • ‌Durable design‌ for long-term performance

‌Applications:‌ Ideal for automotive wiring, industrial equipment, and power distribution systems requiring reliable connections.

Send email to us

Dimensions

φE(mm)6.4
ΦD(mm)6.9
Φd(mm)4.7
W(mm)11.9
B(mm)19
L(mm)35

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
