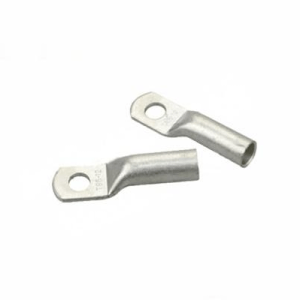

TL25-8 Wire Male Tin Plated Crimp Terminal 4AWG 25mm² Long barrel Crimp Electric Cable Connector

Description

  • ‌High-Conductivity Material‌: T2 oxygen-free copper core (IACS ≥98%) with matte tin plating, passing 96h salt spray test for automotive/marine environments.
  • ‌Long Barrel Advantage‌: 30% extended crimping area vs standard terminals, providing superior cable retention under vibration (tested to ISO 6722).
  • ‌Precision Engineering‌: Flared entry for easy wire insertion, compatible with hydraulic crimpers (dies 8-10mm).
  • ‌Certified Reliability‌: UL & RoHS compliant, operating temperature -40°C~125°C, ideal for battery/starter motor connections.
Send email to us

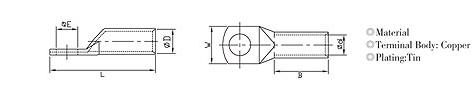

Dimensions

φE(mm)8.3
ΦD(mm)9.5
Φd(mm)7.1
W(mm)14
B(mm)29
L(mm)50

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue AngleStraight
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
