TPE50-6 TPE Copper Tube Terminal Tin-Plated 1/0AWG T2 copper tube

Description

The ‌TPE50-6‌ tube terminals feature ‌high-purity T2 electrolytic copper‌ (99.9% conductivity) with:

  • ‌1/0AWG (53.5mm²) capacity‌ for high-current applications
  • ‌Standard barrel design‌ for secure wire connections
  • ‌5-10μm tin plating‌ for superior corrosion resistance
  • ‌Cold-forged construction‌ (UL486A/B compliant)
  • ‌-60°C to +200°C operational range‌

‌Applications:‌ Ideal for industrial power distribution, automotive wiring, and heavy-duty electrical systems.

Send email to us

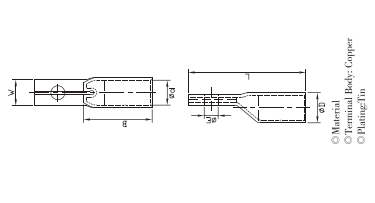

Dimensions

φE(mm)6.4
ΦD(mm)12.6
Φd(mm)9.8
W(mm)15
B(mm)32
L(mm)50

General Specifications

MaterialPure Copper
Copper Content≥99.9%
SurfaceTin-Plated
Tongue AngleStraight
SurfaceTin-plated
Inspection WindowWith inspection window

Dimensions

Electrical Specifications
Rating – Maximum Voltage35KV
Environmental Specifications
Operating Temperature-40 °C to +90°C (-40 °F to +212 °F)
Storage Temperature-40 °C to +80 °C (-40 °F to +176 °F)
Packaging and Weights
IncludedLug
Packaging Quantity and UOM1 pcs
Certifications
ISO 9001:2015Designed, manufactured and/or distributed under this quality management system
